PipeProfiler© is developed to create storm drain system profiles, and structure/pipe schedules. The profiles and schedules are saved in a dxf file format and are capable of being imported to AutoCAD or MicroStation drawings.

Once the inlets and connecting storm drain systems are designed using InletSoft and PipeSoft respectively, the User can invoke PipeProfiler to develop the required profiles and schedules.


All inlets and pipes are labeled and hydraulic grade lines are drawn. PipeProfilerVA can display individual profiles, a single branch or the entire pipe system.

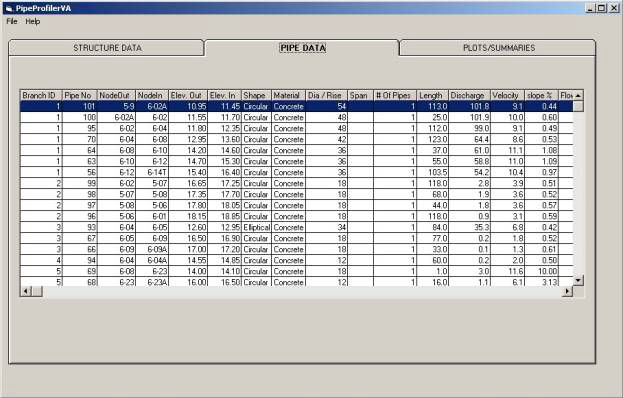

The structure and pipe schedules can also be saved in MS Excel format giving the User the flexibility to prepare quantity and cost estimates.

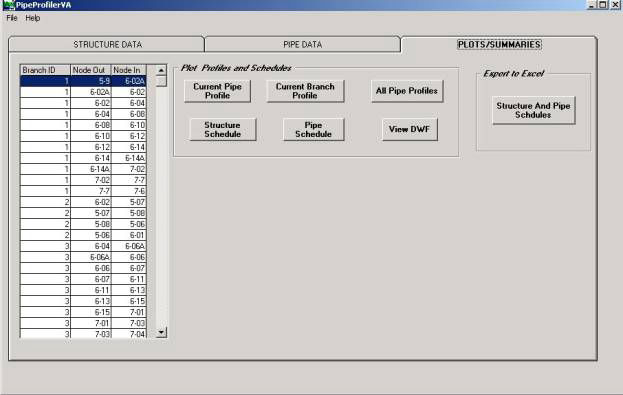

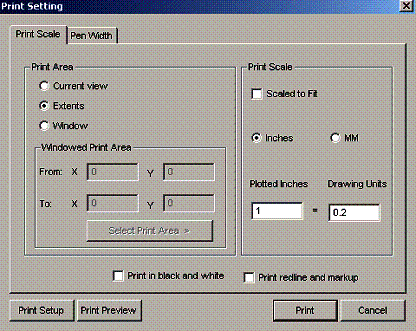

The special feature of PipeProfiler is in its ability to view and print pipe profiles and structure / pipe tables without invoking MicroStation or AutoCAD.
